HOME-PRODUCTS-Regional

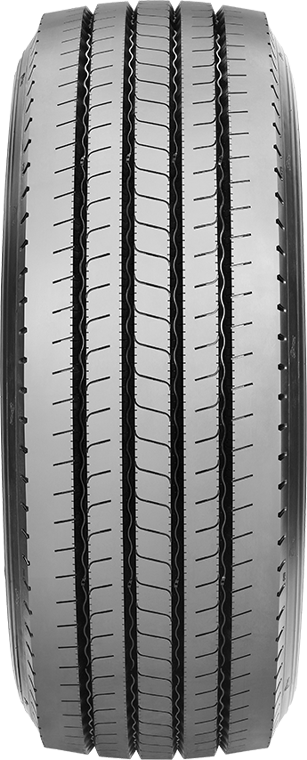

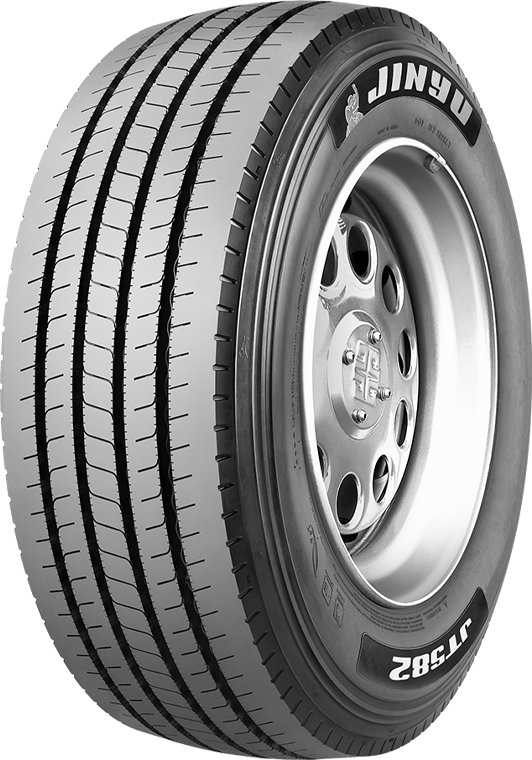

JT582

High Speed

Reduced Noise

High Durability

High Strength

Excellent Stability on Handling

Prevent Irregular Shoulder Wear

High Load Capacity

Suitable

Origin		Size	PR	LI/ SS		Standard Rim	Max. Load				Pressure				Tread Depth (mm)	Overall Diameter (mm)	Section Width (mm)
Origin							(kgs)		(lbs)		(kPa)		(PSI)
CN	VN						S	D	S	D	S	D	S	D
	·	11R22.5	14	144/142	M	8.25	2800	2650	6175	5840	720	720	105	105	9.0	1054	279
	·	11R22.5	16	146/143	M	8.25	3000	2725	6610	6005	830	830	120	120	9.0	1054	279
	·	11R24.5	14	146/143	M	8.25	3000	2725	6610	6005	720	720	105	105	9.0	1104	279
	·	11R24.5	16	149/146	M	8.25	3250	3000	7160	6610	830	830	120	120	9.0	1104	279
	·	295/75R22.5	14	144/141	M	9.00	2800	2575	6175	5675	760	760	110	110	9.0	1014	298
	·	295/75R22.5	16	146/143	M	9.00	3000	2725	6610	6005	830	830	120	120	9.0	1014	298

S=Single D=Dual;  1inch=25.4mm 1kPa=0.142psi 1KG≈2.2lbs

1inch=25.4mm 1kPa=0.142psi 1KG≈2.2 Ibs
